4G GPS WIFI AI ADAS DMS BSD Dashcam Recorder MDVR System for Fleet Management
Produktdetails:
| Herkunftsort: | Shenzhen, China |
| Markenname: | Vanwin Tracking |
| Zertifizierung: | CE/FCC/RoHS |
| Modellnummer: | Die Fahrzeugkennzeichnung ist folgende: |
| Dokument: | news-T5504 V2 English manua... -.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Stk |
|---|---|
| Preis: | negotiated |
| Verpackung Informationen: | Standardmäßig neutrale Kartonverpackung. Eine kundenspezifische Verpackung ist verfügbar, wenn die B |
| Lieferzeit: | 2-3 Tage für Proben, 15-30 Tage für große Bestellungen |
| Zahlungsbedingungen: | T/T oder Western Union oder Paypal |
| Versorgungsmaterial-Fähigkeit: | 5.000 Prozent pro Monat |
|
Detailinformationen |
|||
| Videoformat: | H.264 | Auflösung: | 1080p, 720p |
|---|---|---|---|
| Blickwinkel: | 120 Grad | Speicherkapazität: | Max. 256 GB |
| Eingangsspannung: | Gleichstrom: +10 V ~ +36 V | Stromverbrauch: | < 5W (ohne externe Ausrüstung) |
| Hervorheben: | ADAS DMS BSD Dashcam Recorder,4G GPS WIFI Dashcam Recorder,Fleet Management Dashcam Recorder |
||
Produkt-Beschreibung
4G GPS WIFI AI ADAS DMS BSD Dashcam Recorder MDVR System
Product Overview
This compact, all-in-one vehicle recording solution replaces traditional in-vehicle DVRs. It combines a built-in 1080p camera (ADAS) and a built-in DSM camera, plus supports two external HD cameras - making it a flexible 4-channel system (1-CH 1080p @25fps + 3-CH 720p @25fps).
Technical Specifications
| Component | Specifications |
|---|---|
| CPU | Dual-Core processor@1.5GHz, Total coding resources 1080p*100fps NPU@1.0TOPS neural network acceleration engine |
| Memory | 2Gb DDR3 |
| Video Input | Active Pixels: 1920×1080, 1080×720; H.264 & H.265 format 2-ch Built-in CMOS camera, Low illumination 0.01LUX 2-ch External camera, AHD 720P@25fps |
| Video Output | Not support, Support mobile APP preview and setting |
| Audio Input/Output | Built-in MIC and speaker, G.711a format |
| Video Recording Resolution | 1080P/720P/D1*25fps, Simultaneous recording of sound and video |
| G-Sensor | Built-in 3-axis acceleration |
| External Interface | 2-ch RS232, reserved for communication with peripherals |
| Alarm Input | 2-ch sensor input |
| Positioning Module | Built-in GPS / Beidou Positioning Module |
| 4G | Built-in 4G module, TDD-LTE, FDD-LTE |
| WIFI | Built-in, 2.4G, 802.11b/g/n, STA or AP mode |
| TF Card | Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB |
| USB | Micro USB interface |
| Upgrade | TF card and OTA |
| AI - ADAS | Lane departure, collision alarm, Distance detection, pedestrian detection etc |
| AI - DSM | Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection |
| AI - BSD | Blind area detection |
| Input Voltage | DC: +10V ～ +36V |
| Power Consumption | Normal working state ＜ 5W (without external equipment) |
| Power Off Protection | Super capacitor design, support abnormal power failure, ensure the integrity of video files |
| Working Temperature | -25℃ to +70℃ |
| Working Relative Temperature | 20% to 80% |
| Equipment Size | 138mm × 85mm × 45mm |
| Net Weight | 0.4kg |

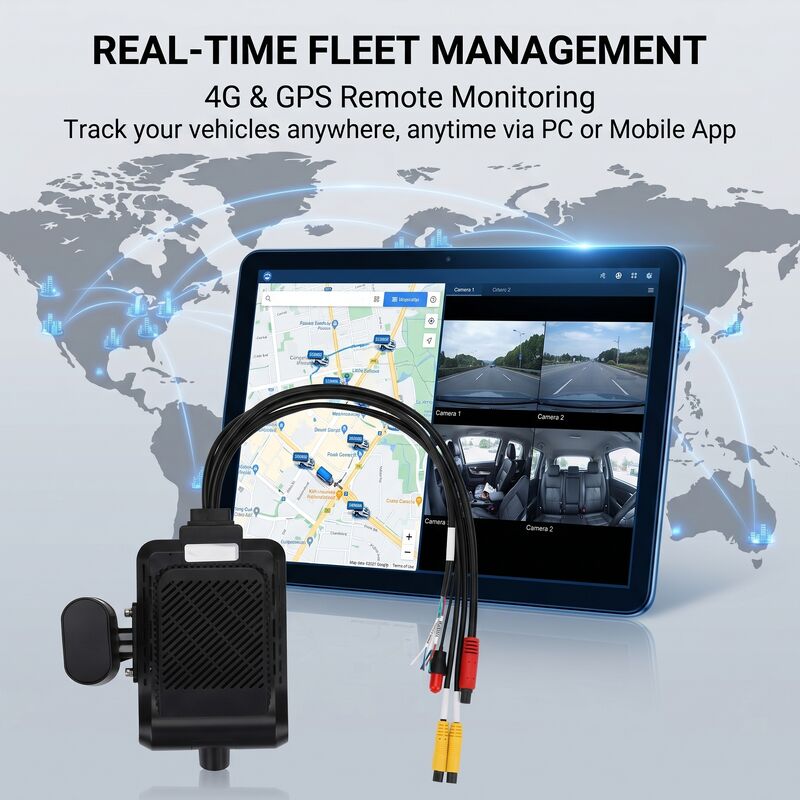

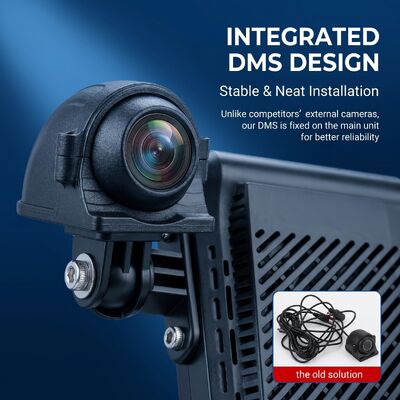

Product Images
Frequently Asked Questions
Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
