1080P Mini Rear Camera Hidden Spy Camera For Car Or Taxi
Produktdetails:
| Herkunftsort: | Shenzhen, China |
| Markenname: | Vanwin Tracking |
| Zertifizierung: | CE/FCC/RoHS |
| Modellnummer: | VW-531 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 5 Stück |
|---|---|
| Preis: | negotiated |
| Packaging Details: | Neutral carton box package by default; |
| Lieferzeit: | 2-3 Tage für Proben, 5-10 Tage für Großbestellungen |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detailinformationen |
|||
| Type: | hidden spy camera for car | Application: | Taxi, small car, bus, van |
|---|---|---|---|
| TV system: | PAL or NTSC | Connector: | 4 pin aviation, RCA |
| Sensor: | CMOS | Voltage: | DC12 |
| Warranty: | 12 months | Resolution: | CVBS/ 720P/1080P |
| View angle: | 170 degree | Usage: | any place |
| Hervorheben: | Taxi Mini Rear Camera,Hidden Spy Camera For Car,1080P Mini Rear Camera |
||
Produkt-Beschreibung

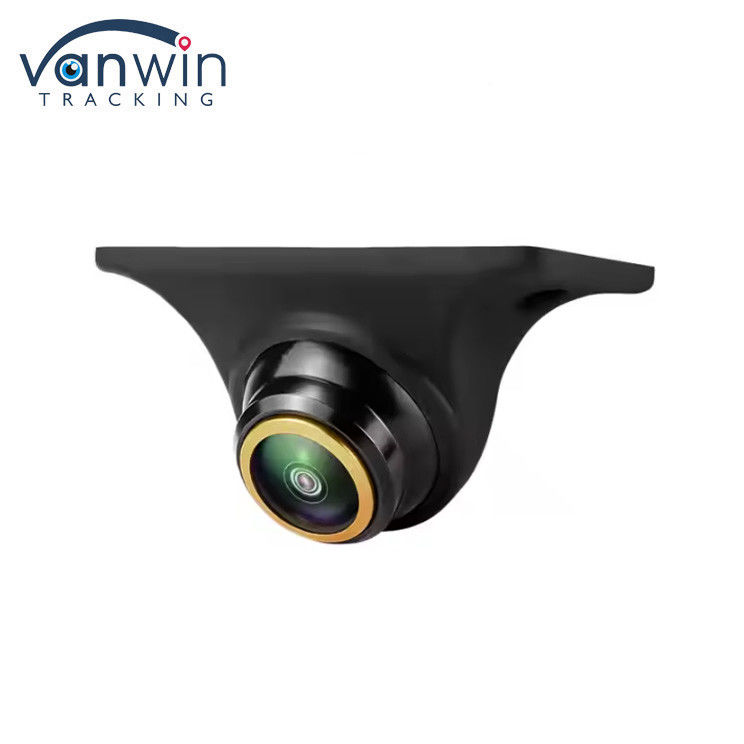

1080P Mini Rear Camera hidden spy camera for Car or Taxi
It can be used with mobile DVR system or reversing system for frontview or rearview.
It's very welcomed with its samll size and easy installation.
Main Features:
1. Rearview or Monitoring for optional
2. Over 110 degree wide angle monitoring
3. Very small size with private mould, only we can produce it
4. Easy installation
5. One of best selling cameras
6. Cabale jack: aviation/BNC/RCA optional;
7. PAL/NTSC optional, DC12V power supply;

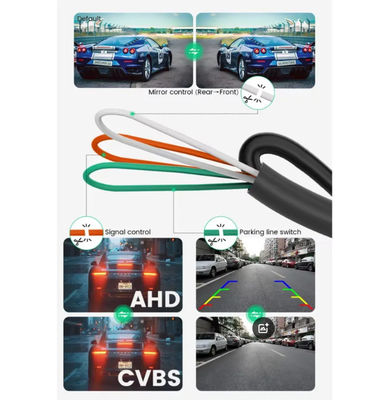

What functions are controlled by each of the 3 cables of the rear view camera?
• AHD-CVBS720P Camera:
Default ( AHD )+( 1280x720 )+( 170° )
Cut the brown cable→
( CVBS )+( 1280x720 )+( 170° )
• AHD1080P Camera:
Default ( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable→
( CVBS )+( 1280x720 )+( 125° )
• The default is the rear view camera (Mirroring).
Cut the white cable→
Front view camera ( Non-mirroring )
You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera
• Camera with parking line/camera does not display parking line, you can cut the green cable, then reconnect the camera's power
supply, that can change the parking line.
Application:
1. Taxi or small car, bus
2. MDVR or rearview camera
Installation cases:
It's very easy to install with 3M VHB sticker and no need to drill a hole or with screws.
As its small size, it can be installed at any place especially the dead zone for driver,
especially for private car or taxies.
Dead zone like the pictures above:
That's why you need to install the mini camera to view dead zone clearly.
